2001 Custom Crosswater Passagemaker 49 "Island Hopper"

Crosswater 49 - Island Hopper

An economical power catamaran passagemaker. With a range capability of 5000 nautical miles at 8 knots, Crosswater exemplifies the qualities of a true “passage-maker”.

The pilothouse is dedicated to high standards of navigation and watch-keeping. It is independent of social areas of the boat. Care has been taken to ensure that persons on watch can preserve their night vision while other activities are taking place in social areas. All pilot house windows are tempered safety glass, there is excellent all-around visibility.

Crosswater is a power catamaran capable of extended passages, but the fuel load can be tailored to less ambitious cruising intentions. Eight fuel tanks are connected through a polishing and transfer system. This system can provide the two rear most tanks wit fuel for the engine on each side.

Each hull is tipped with a slender foam-filled bulb backed by a heavy stern post and a collision bulkhead. Each bulb constructively interferes with the formation of the bow wave allowing for easier passage of the hulls through the water. Hull construction is wood/epoxy/fiberglass composite. Structure above the main deck is fiberglass/wood/foam/epoxy vacuum panel construction.

The boat top deck supports Atlantic Towers fiberglass and aluminum top, carrying 10 solar panels, radar and KVH HD7 dish. The spacious boat deck is likely to be the outside social area of choice at anchor or in port.

Key Features

• Built for the Long Haul: The vessel features exceptional fuel capacity (up to 2,260 gallons), allowing for incredible long-distance endurance.

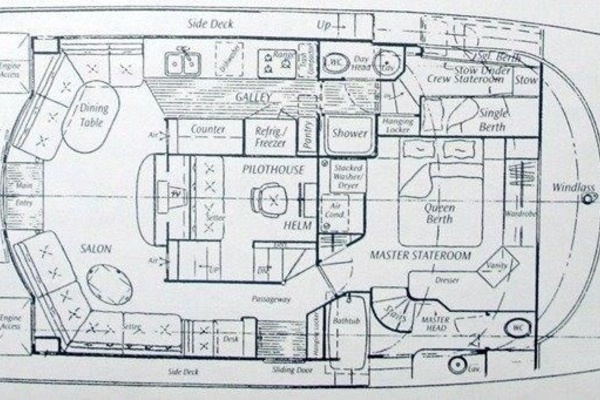

• Layout: Typically configured with 2 staterooms and 2 heads, including an owner's master suite with a queen-sized bed, ensuite head, tub, and shower, as well as a convertible guest stateroom.
• Mechanical: Powered by twin Yanmar 4LHADTE diesels (190 hp each) and often customized with heavy-duty off-grid features like large solar arrays (up to 3,000 watts) and 12.5 kW generators.
• Design: Each hull features a foam-filled bulb that constructively interferes with the bow wave, greatly increasing the boat's hydrodynamic efficiency.
• DimensionsOverall Length: 49 ft 11 inches
• Beam (Width): 23 ft
• Draft: 3 ft
• Displacement: 40000 lbs

Interior

• Heads (Bathrooms): 2
• Staterooms: 2
• Berths: 5
• PerformanceCruise Speed: 9 knots
• Max Speed: 12 knots
• Fuel Capacity: 2260 gal
• Water Capacity: 220 gal
• Holding Tank: 20 gal
• ConstructionHull Material: Composite

• Additional InformationTop deck lounge chairs with pads and covers
• West Marine folding lounge chairs
• Floating lounge mats
• 2 person inflatable towable with rope
• Air draft is 20’ 7” to the top of the KVH satellite dish; 18’ 4” with the KVH dish removed — important for bridge clearance on Great Loop cruising
