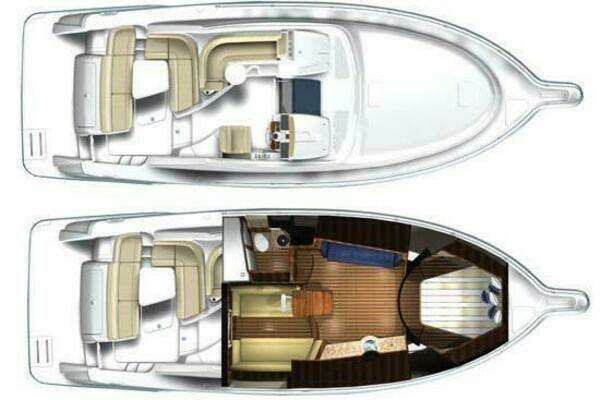

The full complement of IPS technology delivers 360-degree direction control at your fingertips. By utilizing the space advantages of the IPS drive in a single stateroom layout, Tiara Yachts designers have been able to open up the salon and increase the size of the head, including a full-frame door and stall shower. The extra space is also put to practical use in a step-down theater room lounging area. The 3900 Sovran is a uniquely livable single-stateroom floor plan that's ideal for cruising. Its living space is well thought out and fitted out with traditional Tiara Yachts attention to quality, seaworthiness and lasting value.
Standard Equipment
HULL, DECK, AND UPPER COCKPIT
• Fresh white gelcoat hull and deck
• Tiara custom diamond pattern non-skiddeck and cockpit surfaces
• Constructed with a gelcoat outer layer withfiberglass skinned and infused with AME6000 premium vinylester resin using closedmold technology
• Balsa cored deck and hullsides
• Wood and foam core stringers enclosedwith fiberglass and integrated to the hull
• Bronze seacocks on all underwater thru-hull fittings
• Molded-in hullside engine room ventilation
• Black Imron bootline with gold accent
• QL Marine trim tabs
• Five (5) stainless steel molded-in, recessedopening portlights with privacy inserts
• Two (2) cast aluminum and acrylic forward deck hatches with adjusters and built-in Ocean Air shades

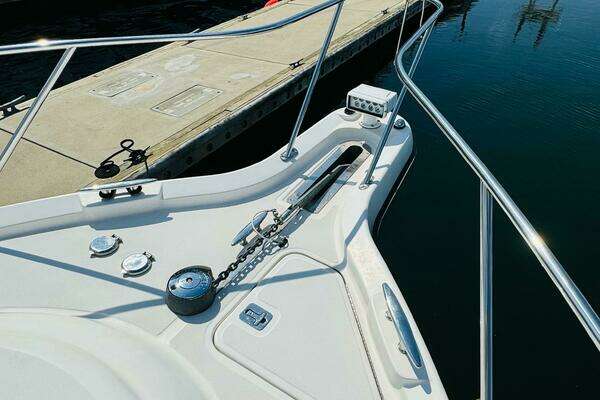

• Molded-in fiberglass pulpit with S.S.roller
• One-piece welded 316L S.S. bow rail with pulpit, staff, and burgee
• Automatic rope/chain anchor windlasssystem with operation from foredeck footpedal and remote switch at helm
• One (1) 10" foredeck cleat
• Four (4) 12" cleats for bow and stern lines
• Two (2) 10" cleats for spring lines
• Tiara custom composite windshieldintegrated into the standard hardtopwith tempered safety glass, safetyhandrails, power opening center section,and 3 washer/wipers

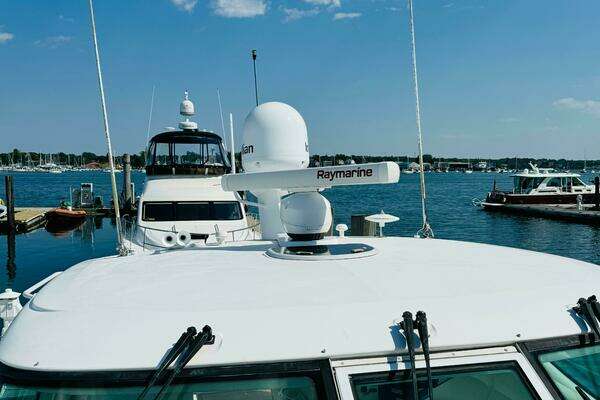

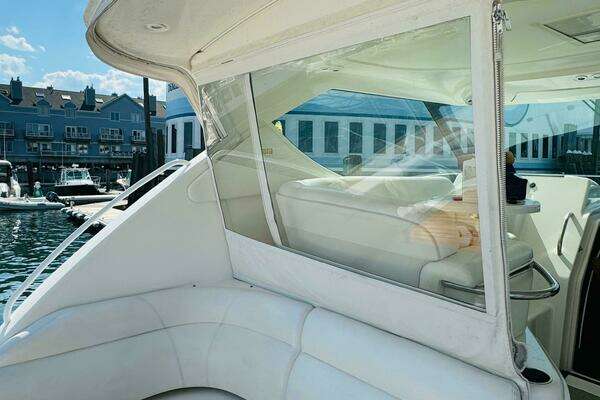

• Tiara custom composite hardtop integrated with the windshield. Includes solid side glass enclosures, aft curtain, 1 hatch with built-in Ocean Air screens and privacy covers, and red and white LED lighting. Aft curtain includes a zippered entryway.

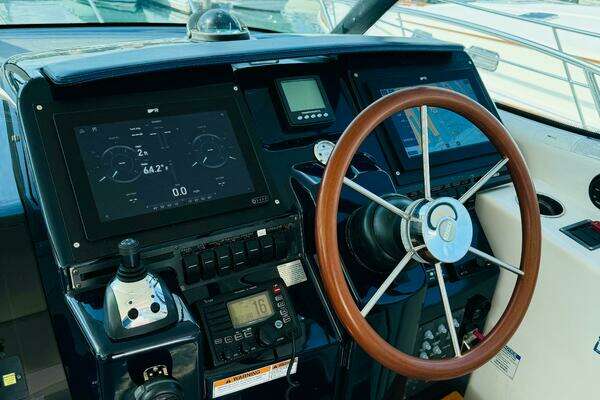

• Tiara hinged helm console with digital engine monitoring displays, recessed cupmahogany steering wheel
• Centerline entry to salon with acrylicsliding companionway door, screen door,and privacy cover

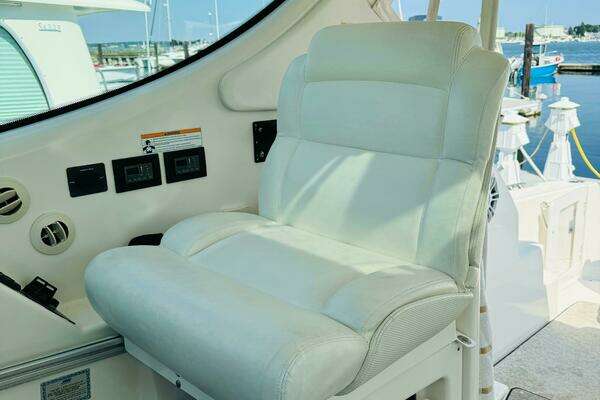

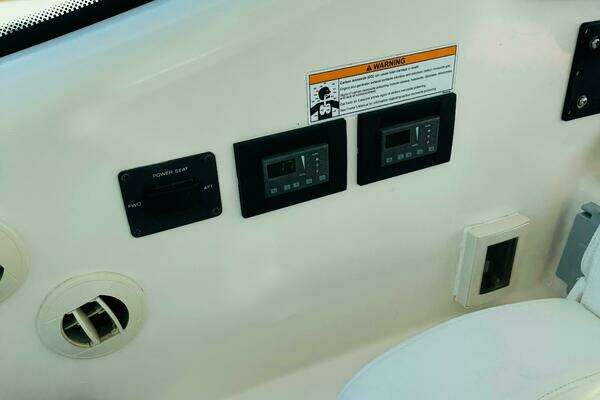

• Helm seat electrically actuated fore and aftwith storage below

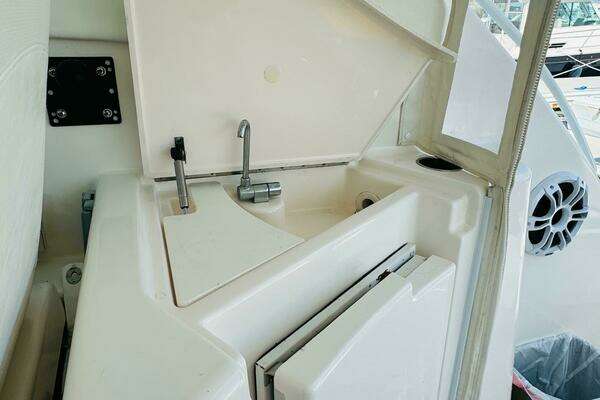

• Upper cockpit wet bar including sinkwith cup holders, refrigerator, and 120Voutlet

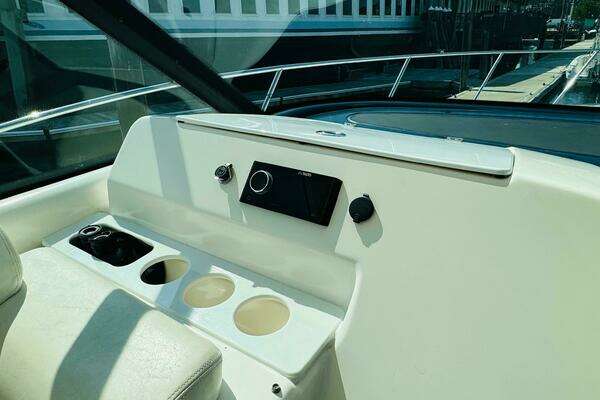

• Portside navigation center includingchart storage with white acrylic lid andcup holders
• Curved companion lounge with table andcup holders
• Helm console and seat covers for allcockpit furniture
LOWER COCKPIT
• Engine room access day hatch
• Actuated cockpit floor with insulatedfiberglass liner for engine roomaccess
• Aft facing seating

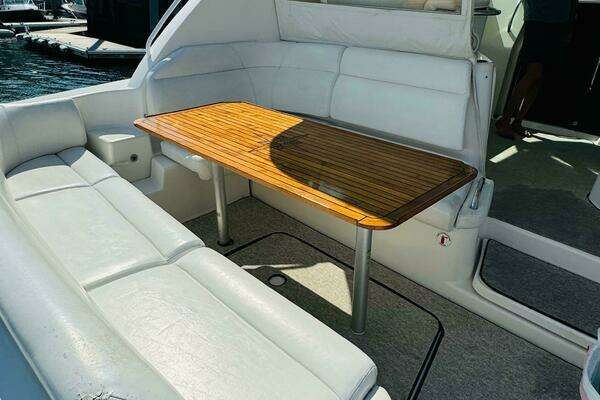

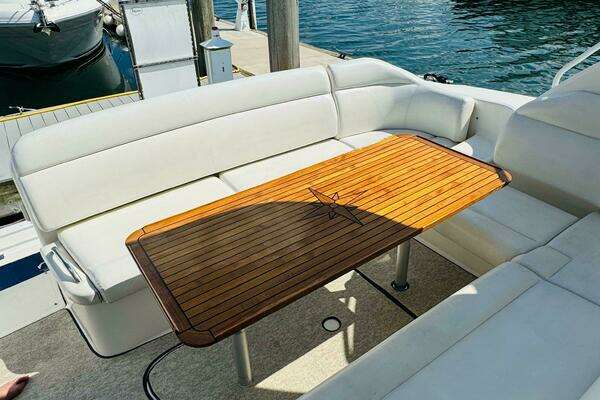

• Wrap around lounge with removable table, sun pad conversion, cup holders, andstorage below
• Molded-in steps to deck walkways
• Cockpit coaming bolsters
• Cockpit LED courtesy lights
TRANSOM AREA
• Single transom (starboard side) acrylic glassentry door with S.S. hardware. Door opensinboard with safety catch.
• Transom S.S. grab rail (starboard)
• Port and starboard transom mounted pop up cleats
• 48" integrated swim platform with slide-out S.S. swim ladder and 4 pad-eyes
• Transom storage compartment withfiberglass liner and one piece door actuatedwith gas springs
• Cockpit shower, hot and cold water
• Fresh water washdown outlet
• Raw water washdown outlet
INTERIOR GROUP
• Mold and mildew resistant headliner andhullside treatment

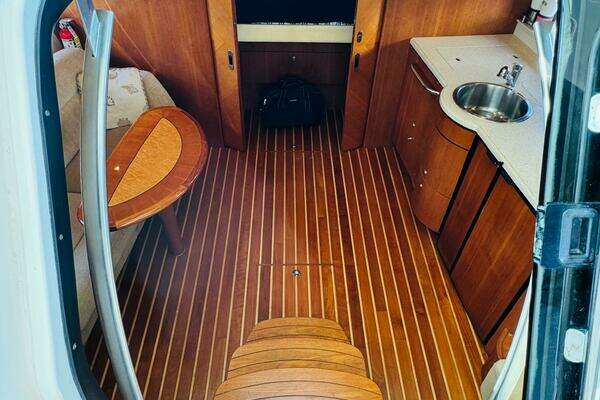

• Teak interior

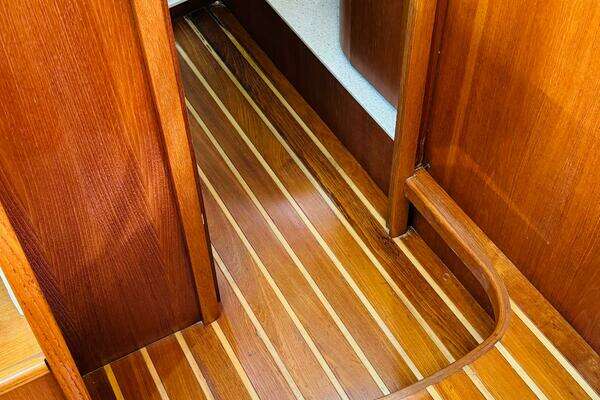

• Teak hardwood floor
• 12V lighting
MAIN SALON

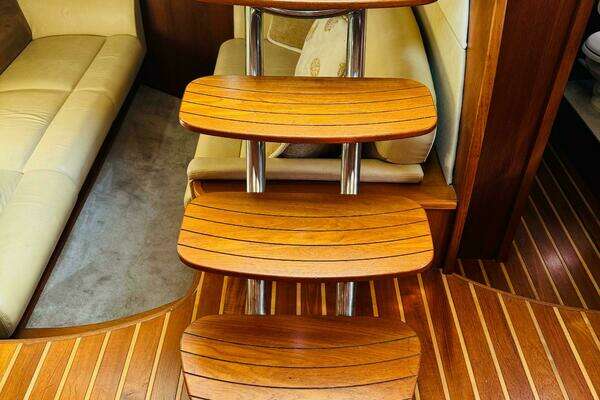

• Teak companionway entry steps
• Companionway safety handrails

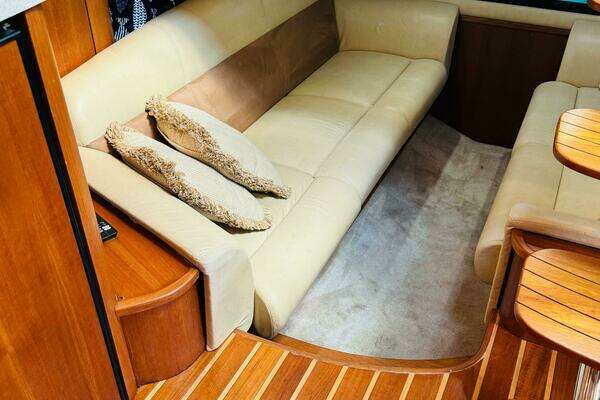

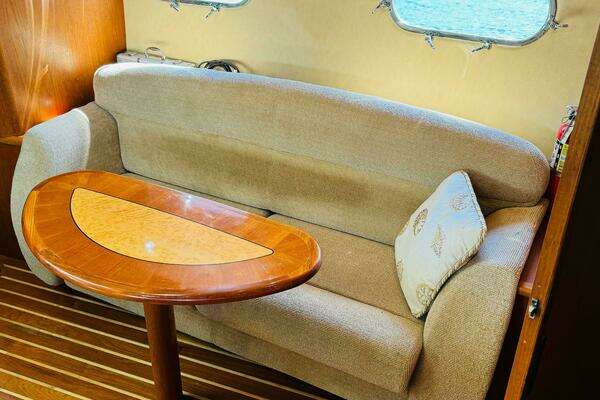

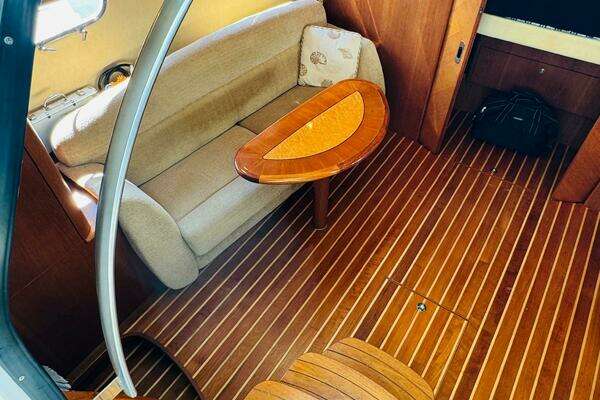

• Port side sofa complete with dinette table(teak with birdseye maple inlay and highgloss finish) and seating for 4
• Port and starboard upper hullside storagecabinets
• Cedar lined hanging locker, port
• Privacy curtain between salon and theaterroom
• Marine Air Systems 18,000 BTU air conditioner with reverse cycle heat

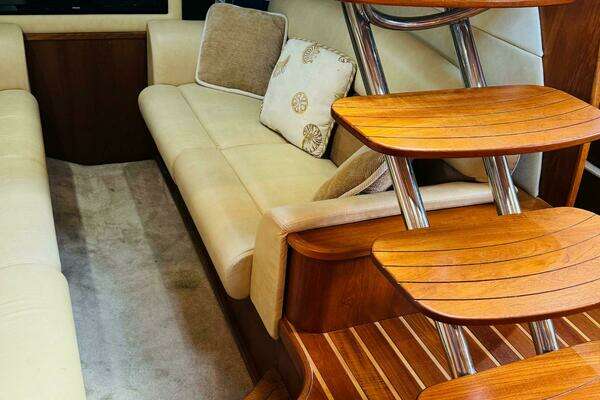

LOUNGE & THEATER ROOM
• Flat screen TV with speakers integrated with media/entertainment system

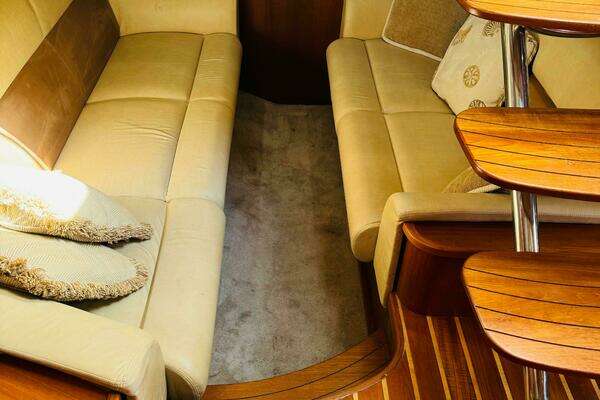

• Lounge seating fore and aft extending lengthof the room. Electrically actuated fillercushion to convert for sleepingprivacy curtain to enclose.

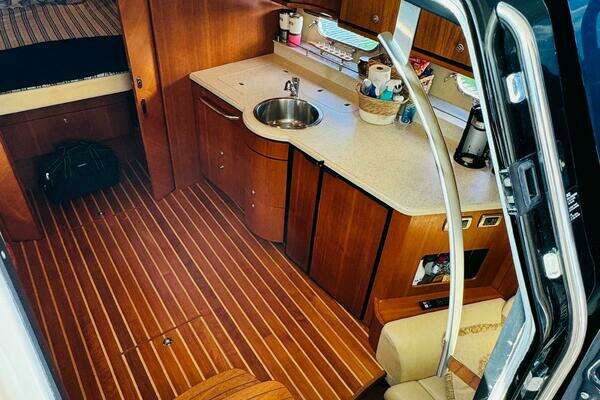

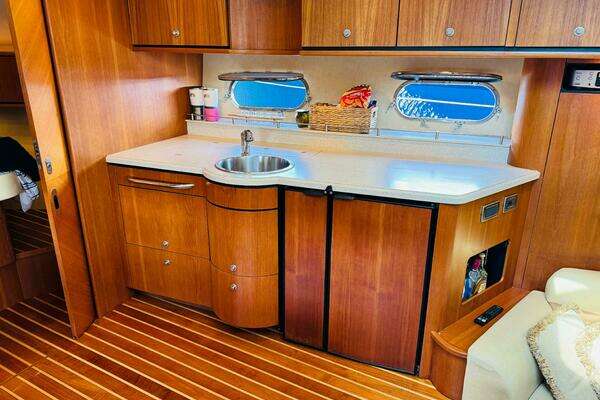

GALLEY
• Corian countertop
• One (1) S.S. undermount sinks withCorian cover and hot/cold water faucet
• Upper and lower cabinet storage

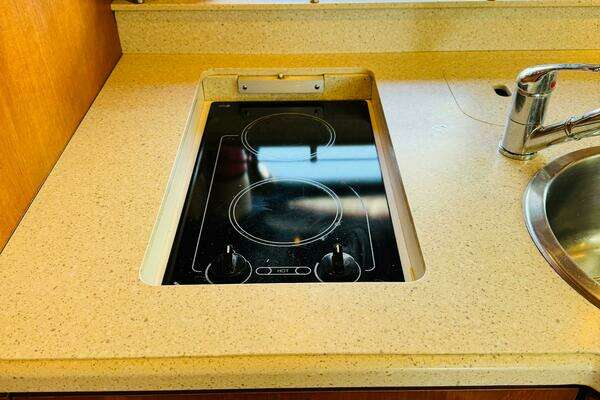

• Recessed two (2) burner ceramic cooktopwith Corian cover

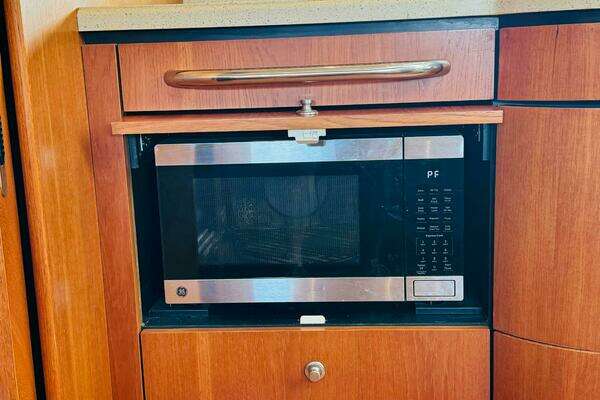

• Microwave oven

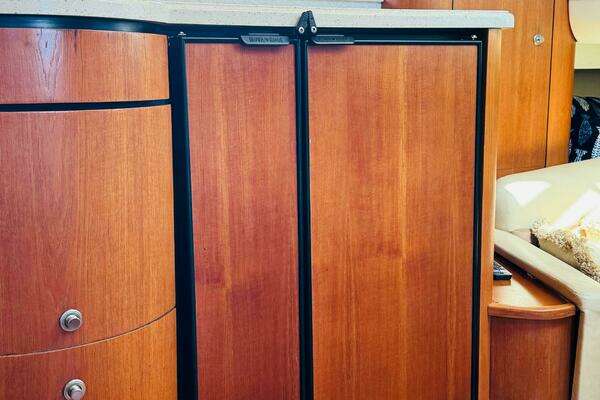

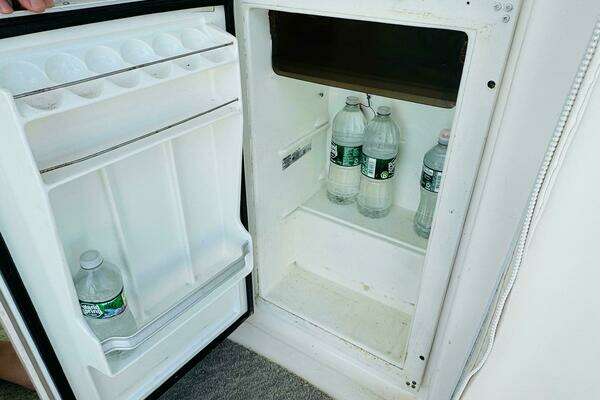

• NovaKool AC/DC refrigerator/freezer,wired DC
• Storage for cooktop and sink covers
• Stove top exhaust fan
• Waste basket

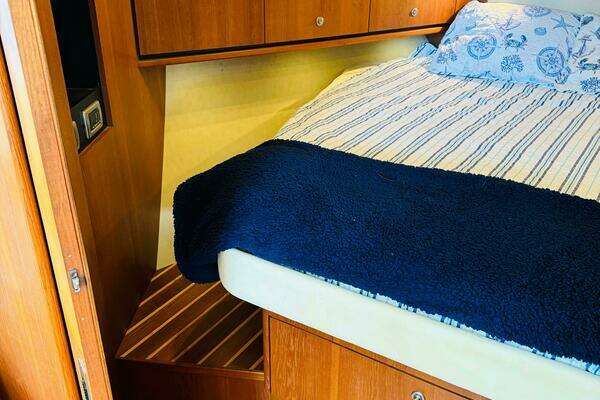

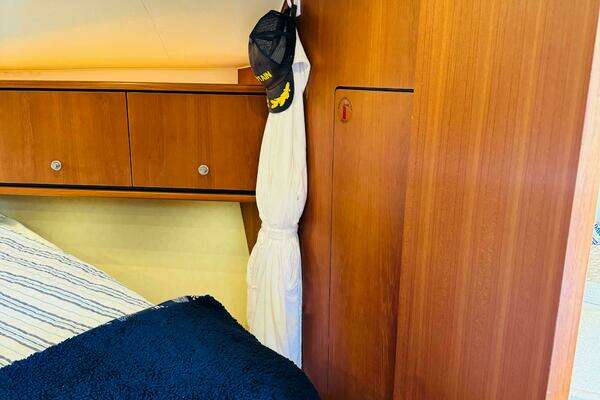

MASTER STATEROOM
• Curved sliding teak doors separate themaster stateroom from the salon

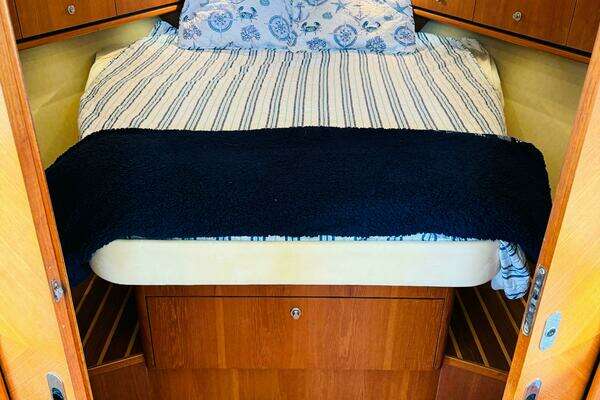

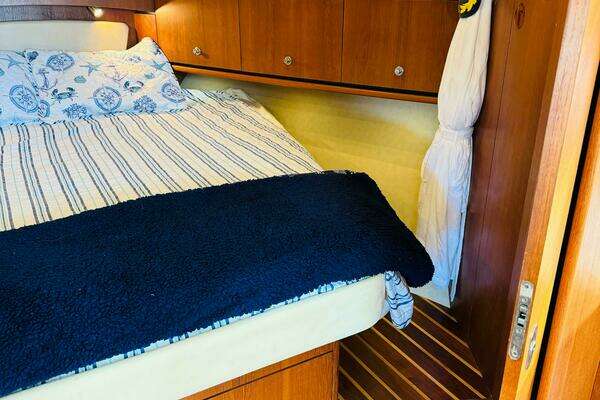

• Manually actuated pedestal berth withinner spring mattress and drawer storagebelow.
• Port and starboard overhead storagecabinets
• Two (2) reading lights, independentlyswitched
• Cedar lined hanging lockers, port andstarboard

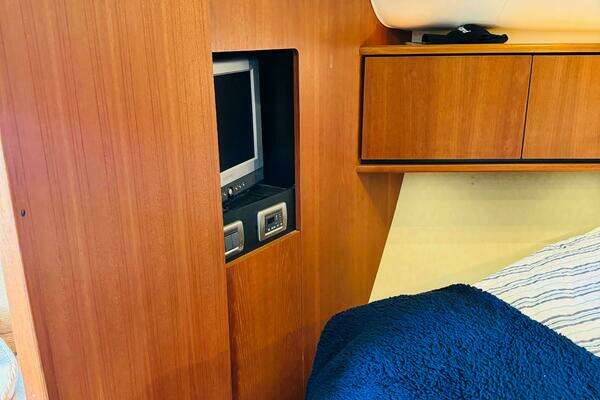

• Flat screen TV
• Marine Air Systems 7,000 BTU airconditioner with reverse cycle heat
MASTER HEAD
• Full frame door with entry from the salon

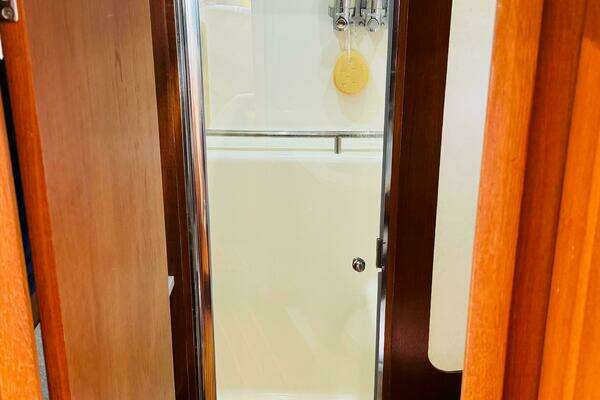

• Fiberglass stall shower with glass showerdoor

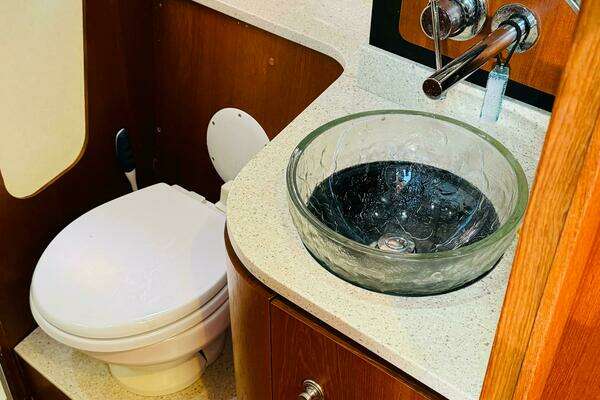

• Corian vanity countertop with clear glassvessel sink
• Lighted upper medicine cabinet with mirror
• Linen cabinet inboard with shelf storage

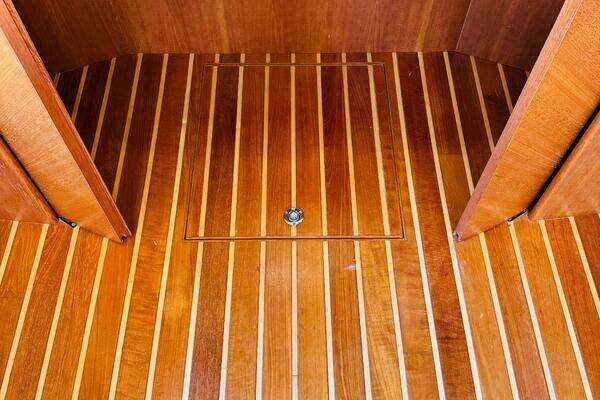

• Teak and holly inlay floor
• Vacuflush toilet
• Air conditioning discharge/vent
• Exhaust fan
• GFI protected outlets
INSTRUMENTATION, SAFETY, ANDEQUIPMENT
• Tiara custom 12V DC and 120V/240VAC electrical system with DC masterdistribution panel in the cockpit
• One (1) 120V/240V AC 50 amp 65'dockside power cord with Glendinningcable recoiler and adapter for 30 ampservice, located port aft
• Onan9kw MDKBL diesel generator with sound shield and helm indicator
• Charles battery charger (1), 80 amp
• 12V 2 bank battery system withbatteries and battery switches (3 enginebatteries and 4 house batteries)
• Battery parallel system
• Electrical bonding system
• Zincs - transom, trim tabs, & drive units

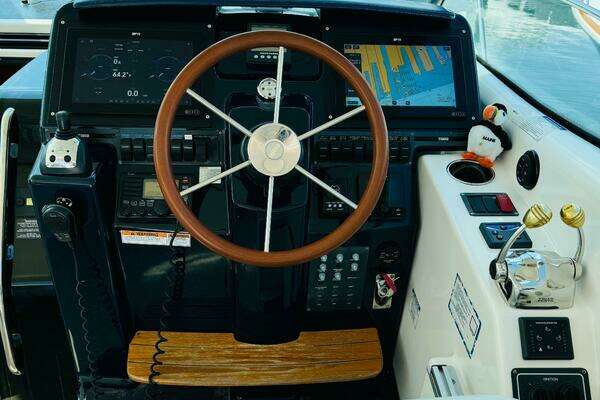

• Volvo electronic engine controls and steering system with 17.5" mahogany wheel
• Volvo IPS joystick control
• Volvo digital engine monitoring system includes fuel level and rudder angle indicators. Separate volt meters for engine and house batteries.
• Ritchie 4 1/2" SS-2000 Navigator compass
• High output 115 amp alternators (2)with internal regulators
• Engine room acoustical insulation withoverhead fiberglass liner and 12Vfluorescent lighting
• Racor fuel filters/water separators forengines & generator
• Raw water intake strainers on engines
• Vibration mounts for engines and generator
• Oil changing system - main enginesand generator
• Three (3) automatic/manual bilge pumpswith monitors at helm, 2000 GPH each: 1forward, 1 mid, and 1 aft
• Service pump forward, 500 GPH
• Composite fuel tank, total capacity 300gallons with in-line fuel vent filters
• Fresh water tank, 102 gallons
• Fresh water pressure system with Shurflo variable speed pump
• Dockside water inlet, aft
• Water heater, 11 gallons
• Holding tank, 38 gallons, with deckdischarge and holding tank vent filter
• Fresh water tank/holding tank monitor
• Dual air horn
• FE-241 fire extinguisher system for engineroom (HGC–227 agent for CE)
• U.S.C.G. and International navigationlighting
• NMMA Yacht Certification
