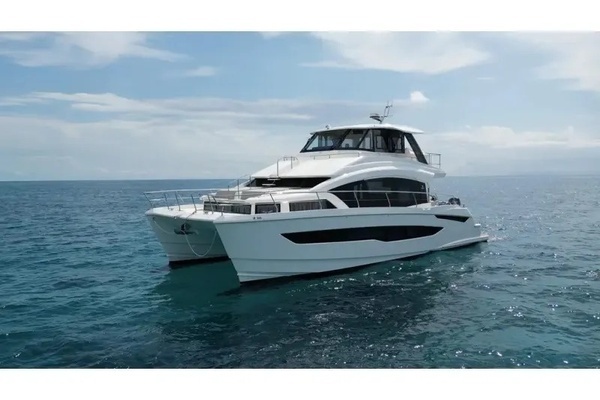

2025 Aquila 54 YACHT "2025 Aquila 54 YACHT"

Notes:

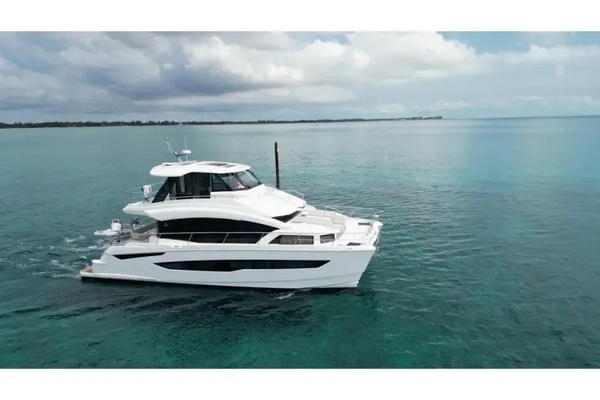

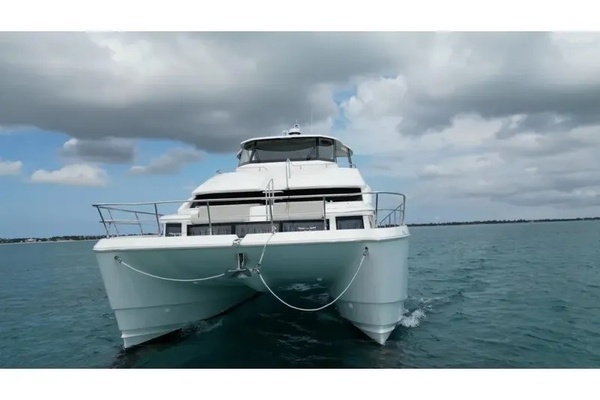

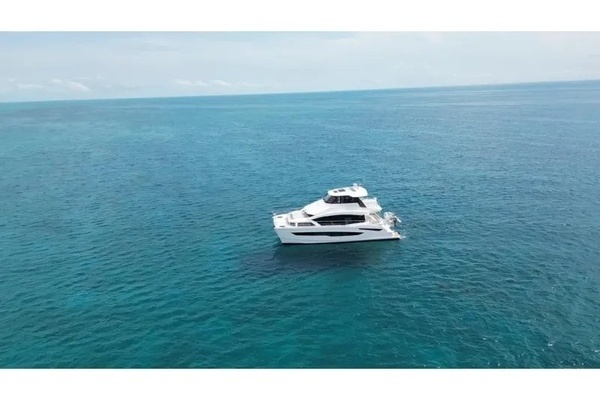

Aquila 54 2025 – The Ultimate Escape for the Whole Family

Experience absolute luxury with this 2025 Aquila 54, a catamaran built for those who refuse to compromise on adventure. Meticulously maintained, this yacht is ready to take you to turquoise waters and endless horizons.

Its spacious layout, high-end amenities, and exceptional stability make it the perfect boat for unforgettable family getaways. Whether you're cruising along the coast or spending the winter under the Bahamas sun, the Aquila 54 guarantees comfort, autonomy, and elegance every step of the way.

Ready to live your dream on the water? Contact us now!

DIMENSIONS | WEIGHT

Length Overall : 54ft 2in

Beam : 25ft 2in

Draft : 4ft 6in

Weight : 52 367 lbs

ENGINES

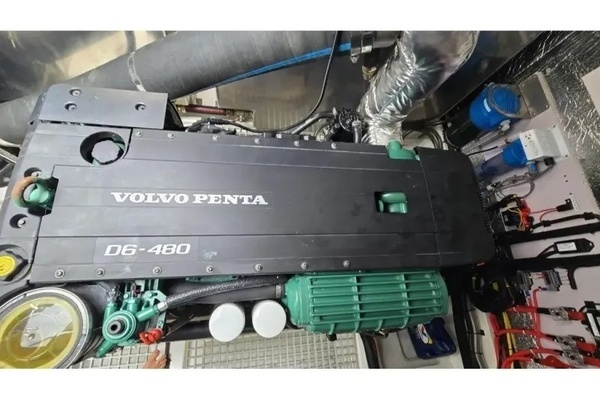

Twin 480 HP Volvo D6 inboard

CAPACITY

Fuel tank : 581 gal

Water tank : 238 gal

Sleeps : 10+

OPTIONS

Aquila 54

Three cabin, Three heads, 2 x 380 HP Volvo D6 with 7" Volvo display at helm, rope cutters, hard top with SS supports on flybridge with lights incl forward fixed windscreens and manual overhead opening hatches, 88LBS delta anchor with chain, electric induction cooktop (four burner), inverter/chargers, antifouling paint, mooring kit - includes shipping cradle and shrink wrap - see base boat specifications list for additional details - FAS Shanghai‘s pre-selected port

Cabin Layout

Change from standard layout three cabin three head to four cabin four head with galley up - all other items per standard base boat

Propulsion

Reserve fuel tanks (2 x 360L / 92gal) with transfer pumps

Bow thrusters x 2 - port and stbd hull - 8.0HP - 6.0KW - thruster control at upper helm

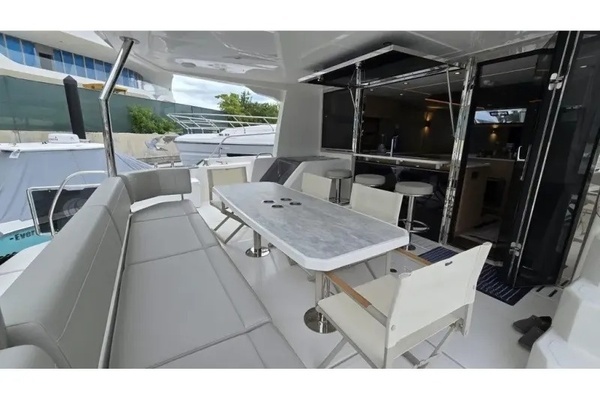

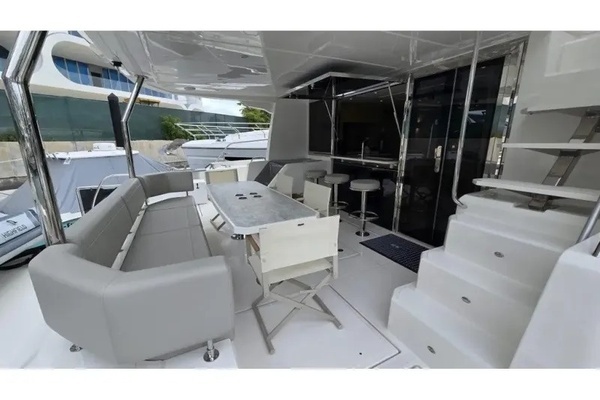

Flybridge

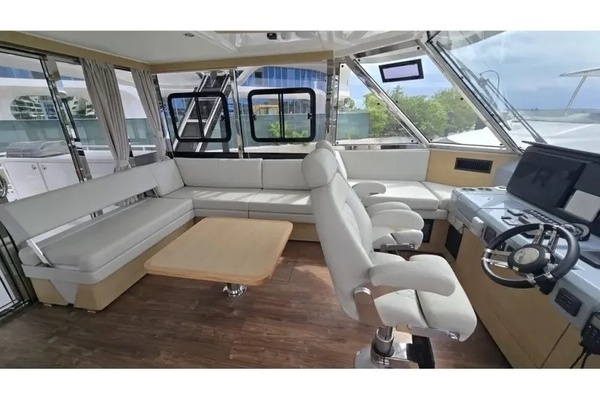

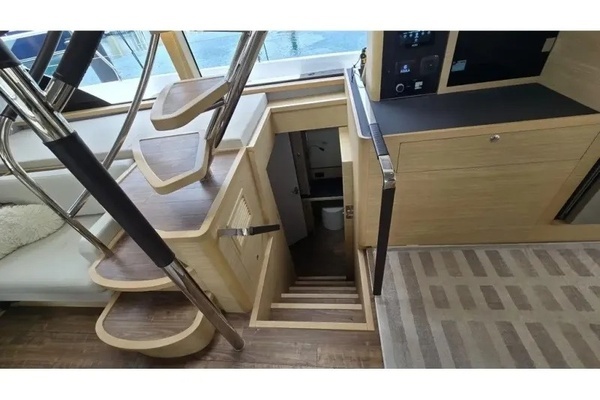

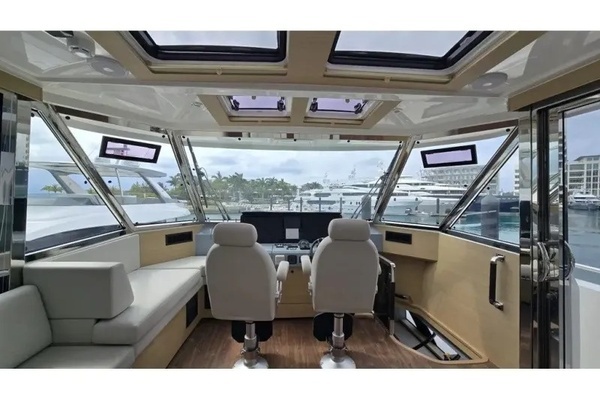

Fully enclosed sky lounge with upgraded furniture, upholstery and fabric finishes to match salon - AFT stainless steel sliding door and side access door with additional access from interior stainless steel stairway from salon - in lieu of open flybridge

Electrical sliding hatches (2) in place of standard manual opening overhead hatches

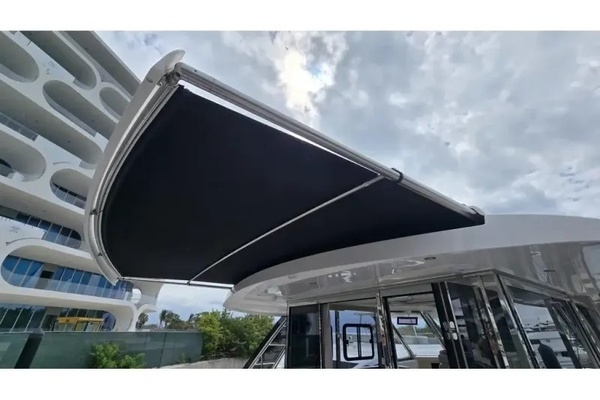

Electrical retracting Canvas system integrated into AFT section of hard top

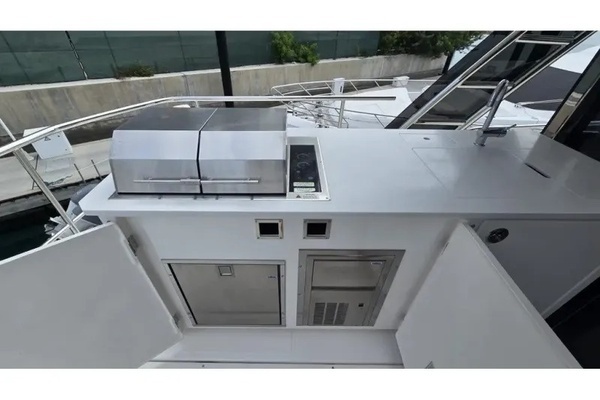

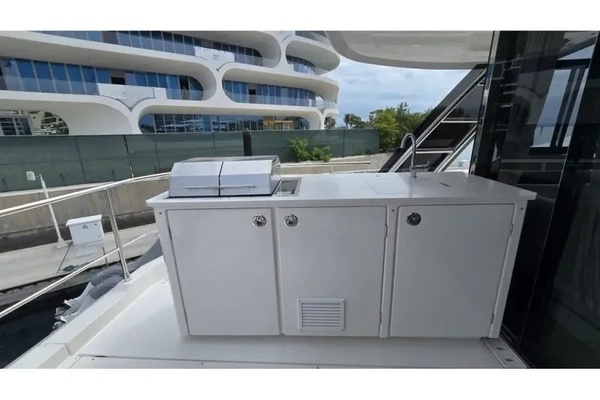

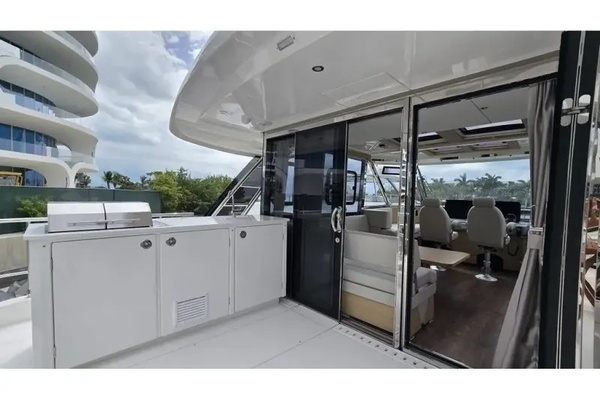

Electrical BBQ on AFT deck flybridge wet bar (310 square inches of cooking area) with 65L stainless steel fridge

Stainless steel ice maker at AFT deck wet bar installed next to 65L stainless fridge

Flip down 32 inch TV flybridge (excludes TV)

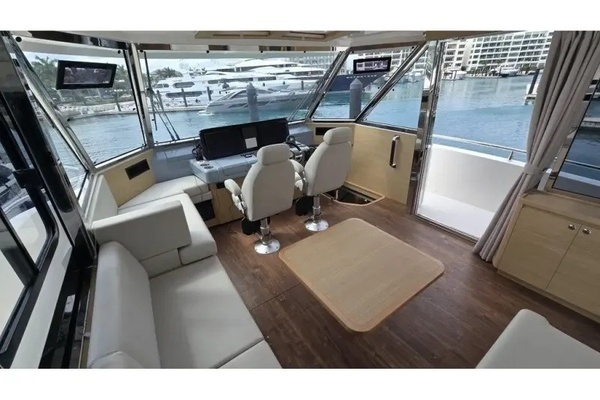

Captain chairs x 2 in place of FRP molded bench seats

Deck Gear

Aquila 14 cat rib sport console, electric start with 40HP Mercury outboard, lifting bridle and securing tackle, tow post

Electrical dinghy crane lifting system with fixed AFT platform for dinghy - maximum lifting capacity 1,000LBS/454kg

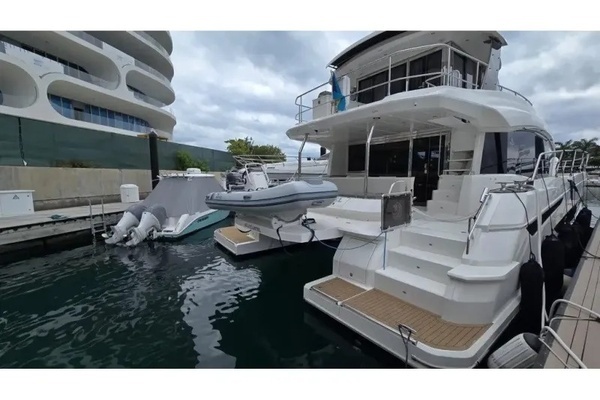

Hydraulic AFT lifting platform between hulls (does not go under water, creates full width "beach deck" at lowest level on deck - replaces fixed AFT platform and can be used for dinghy storage - maximum lifting capacity 1,000LBS/454kg)

AFT docking capstans (2 x electrical winches)

Wireless remote for windlass

Electric System

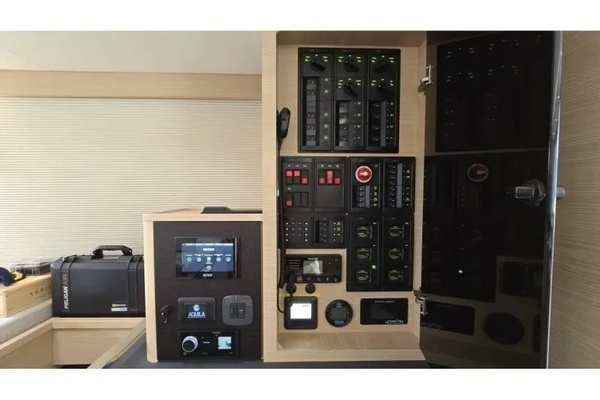

Fully integrated fire, heat, and carbon monoxide detection system including - 3.5” LCD monitoring screen, 8 x smoke detectors, 6 x heat detectors, and 7 x carbon monoxide alarms

Additional house battery inverter/charger - mastervolt mass Combi Pro 24v/3500W-100

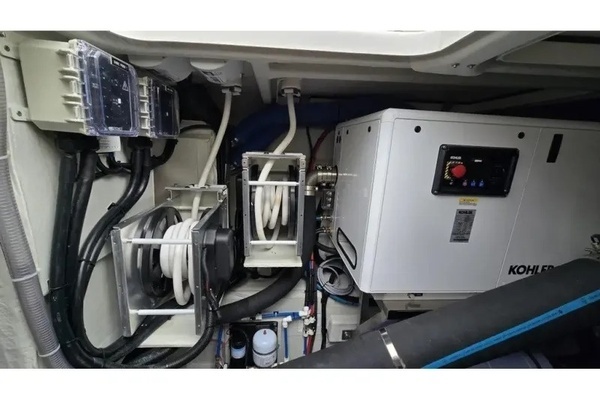

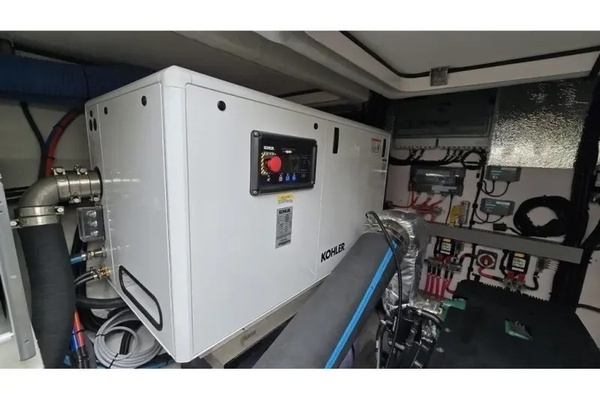

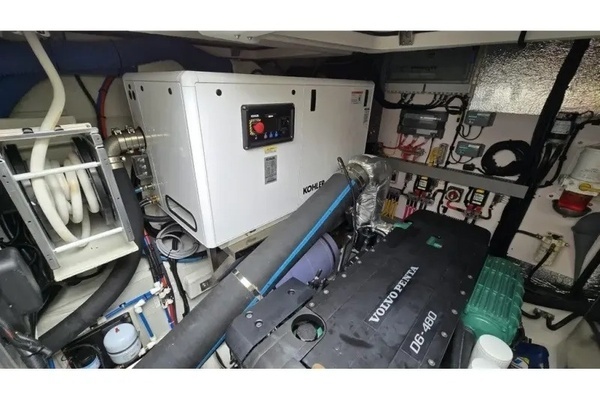

Generator 21KW 60HZ dual voltage (120v and 240v) with sound enclosure, remote control and fuel transfer pump

Solar panels - 2 x 100W

Shore power cable master stowage system (two systems)

Water

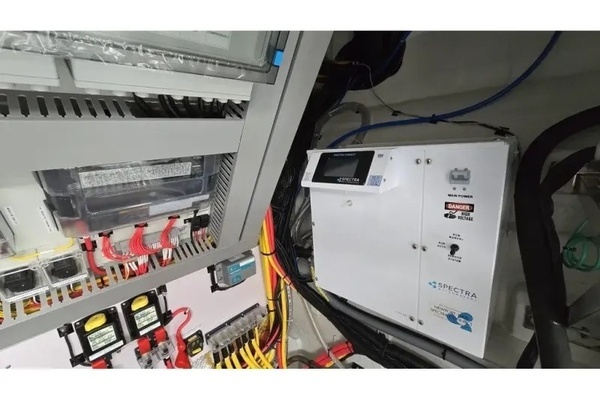

Water maker 189ltr/50gal per hour - SeaXchange XTCII1200 (220/240V)

Dockside water connection

Sea water deck wash pump for bow area

Fresh water deck wash pump for bow area

Comfort

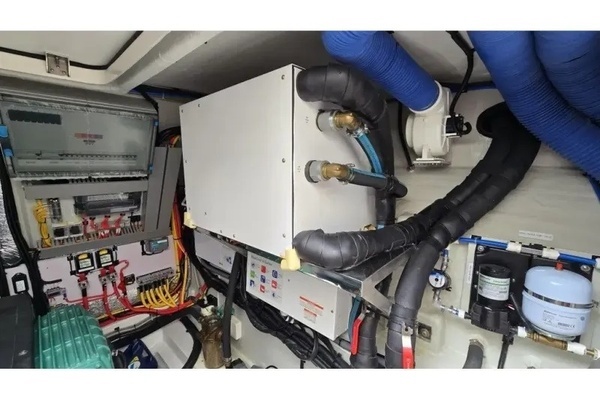

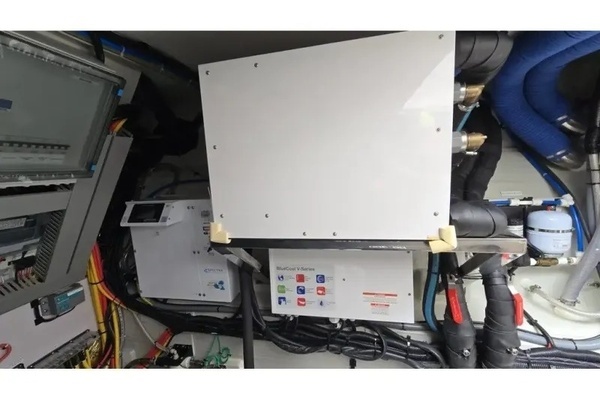

Chilled water air conditioning - V77-77000 BTU chiller for four cabin, salon and flybridge (variable speed)

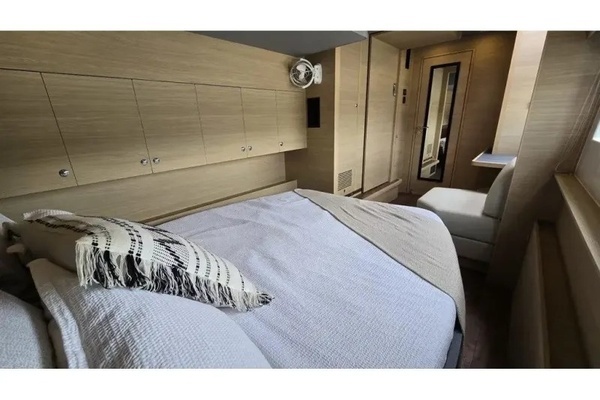

Fans in cabins - two fans in master bedroom and one fan in each guest cabin - four cabin version

Curtain on salon entry door

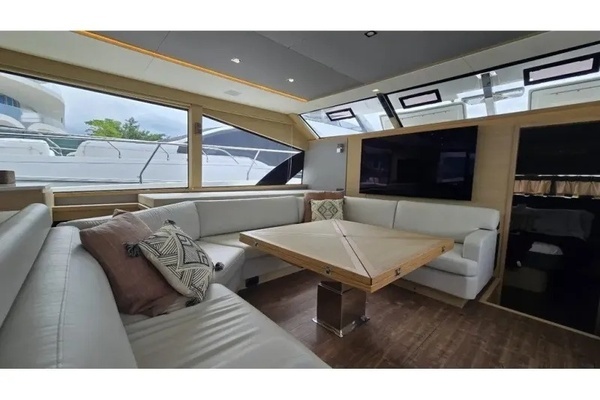

Adjustable high/low electrical salon table pedestal (coffee table height to dining height)

Washer/dryer single combo unit - ventless

Prefitting for 3 TVs with support in cabins - four cab version (TV's not included, excludes prefitting in aft port cabin with bunks)

Standard system in salon + single all in one bluetooth soundbar in all cabins - four cabin version

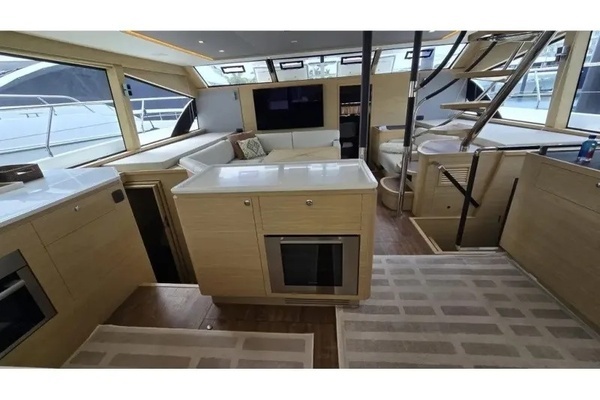

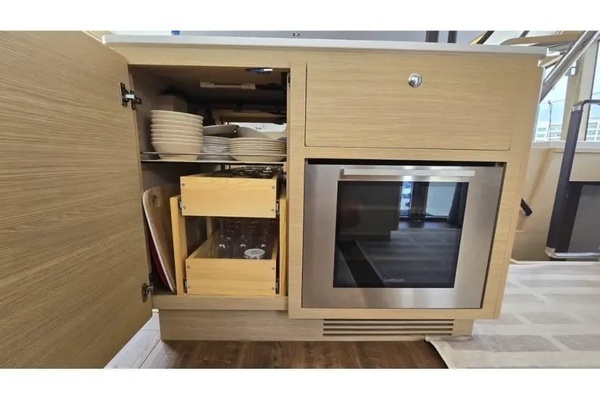

Convection oven (120v, 60Hz) installed under main galley countertop in lieu of standard microwave (cannot be ordered with the dishwasher)

Electric wine cellar in salon/galley (23 bottles)

Navigation

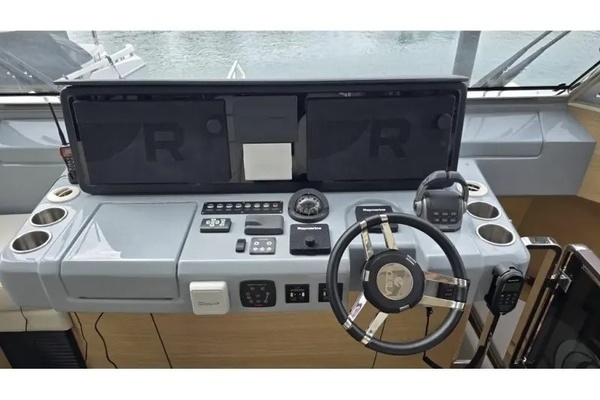

Offshore navigation package - includes all items as listed in the above Coastal Navigation Package plus a Raymarine radome Quantum 2 Q24D color scanner, Raymarine AIS700 system with antenna coupling, and a second Raymarine 16" Axiom2 Pro S chart plotter

Raymarine AIS700 system with antenna coupling

Additional Raymarine cam300 camera mounted to face AFT starboard into transom area

Evolution autopilot wireless remote

Lighting

Spot light with remote

Blue led courtesy deck lighting package on portuguese flybridge walkway and main side deck walkways

Underwater lighting- 4 x Explore E6 XFM colors DMX

Under Water

Propspeed antifouling for underwater running gear
